This product is a high-end imaging payload designed for industrial-grade surveillance drones. Leveraging 100-megapixel ultra-high-resolution imaging capability, it overcomes the long-standing pain points of traditional aerial surveillance - unclear wide-area views, narrow telephoto framing, and the inability to balance near and far detail - delivering both large-area full-scene coverage and kilometer-range ultra-long-distance detail capture. Unlike consumer-grade megapixel aerial imaging devices, this product is purpose-built for professional security monitoring, emergency inspection, and security evidence-gathering scenarios. Centered on high-definition visualization, intelligent analysis, and full-area traceability, it serves as the core high-precision aerial visual perception device for government/enterprise security, industrial inspection, and public emergency-response applications.
Core Advantages
- HD Night Vision: Integrated with a high-sensitivity sensor to deliver 24-hour HD color night vision, capturing every detail.
- Intelligent Anti-Glare: Suppresses strong-light interference and handles complex lighting conditions, delivering stable, non-overexposed imagery.
- Intelligent Analysis: Built-in AI algorithms detect airborne drones in real time, performing behavior analysis and risk alerting - turning passive monitoring into active defense.
- Dust & Fog Penetration: Advanced wide-spectrum imaging technology effectively penetrates dust, smoke, and mist, maintaining clear visibility even in adverse weather.
- Self-Cleaning: Resistant to dust adhesion and frost buildup, eliminating the need for frequent manual cleaning and significantly reducing maintenance costs.
Application Scenarios
Industry & Energy
Typical Applications
- Mines, quarries, cement plants
- Steel, metallurgy, chemical plants
- Power plants, substations, oil & gas stations
Core Product Features
- Dust/fog penetration for harsh environments
- Active self-cleaning, stable and reliable
- Intelligent analysis and HD night vision
- Intelligent anti-glare technology
Transportation & Infrastructure
Typical Applications
- Highways, railways, airports
- Ports, docks, logistics hubs
- Bridges, tunnels, major construction sites
Core Product Features
- Dust/fog penetration for all-weather monitoring
- HD night vision with clear detail
- Intelligent analysis with proactive alerts
- Active self-cleaning, stable and reliable
Urban & Security
Typical Applications
- Urban high-altitude surveillance and security
- Border and coastline monitoring
- Forest fire monitoring
Core Product Features
- Ultra-long-range monitoring capability
- Dust/fog penetration and HD night vision
- Intelligent anti-glare and intelligent analysis
Special Applications
Typical Applications
- Water conservancy facilities (reservoirs/dams)
- Cold-chain warehouses, agricultural greenhouses
Core Product Features
- Stable and reliable in special environments
- Intelligent analysis for decision support
- Anti-frost function for low-temperature adaptability
Core Parameters
|
Parameter |
Specification |
|
Sensor |
Silicon-based wide-spectrum sensor |
|
Pixel Size |
3.76µm × 3.76µm |
|
Resolution |
9568(H) × 6380(V) |
|
SNR |
46.86 dB |
|
Minimum Illumination |
0.001 lux |
|
Exposure |
34µs – 300s; actual step: 1 line period |
|
Gain |
0dB – 36dB; default 0dB, step 0.1dB |
|
Pixel Format |
Mono8 / Mono12 / Mono14 / Mono16 |
|
Max Frame Rate |
17.9 fps |
|
Binning |
1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4 |
|
Synchronization |
External trigger, software trigger |
|
Operating Mode |
Single-frame capture, continuous capture, software-triggered capture, external-triggered capture |
|
Mirror Flip |
Horizontal mirror |
|
Dust-Penetrating Imaging |
Clear imaging at dust concentration ≥500 mg/m³; penetrates rain, fog, and smoke |
|
AI Algorithm |
AI drone recognition, super-resolution |
|
Interface |
10GigE |
|
Power Supply |
12VDC−10% to 24VDC+10% |
|
Cooling |
TEC semiconductor cooling + fan |
|
Weight |
< 14 kg |
|
Operating Temperature |
−40℃ to +70℃ |
|
Humidity |
10% – 80% |
Lens Parameters
|
Parameter |
Specification |
|
Waveband |
450nm – 1200nm |
|
Aperture |
F1.2 – 16, clear aperture ≥100mm, variable iris |
|
Focal Length |
210mm ± 3mm |
|

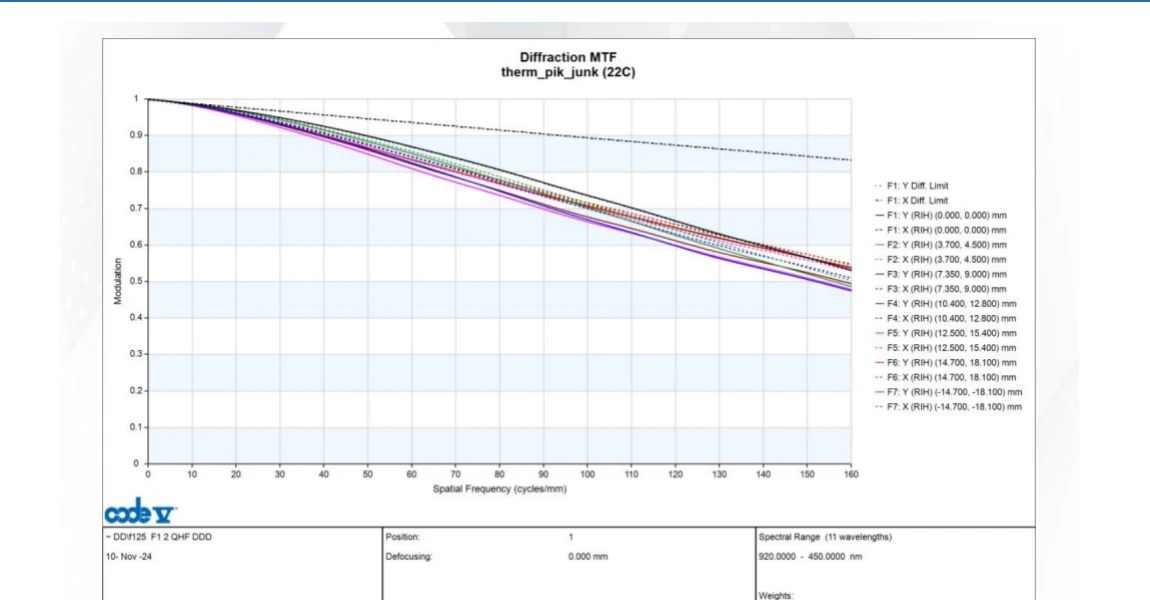

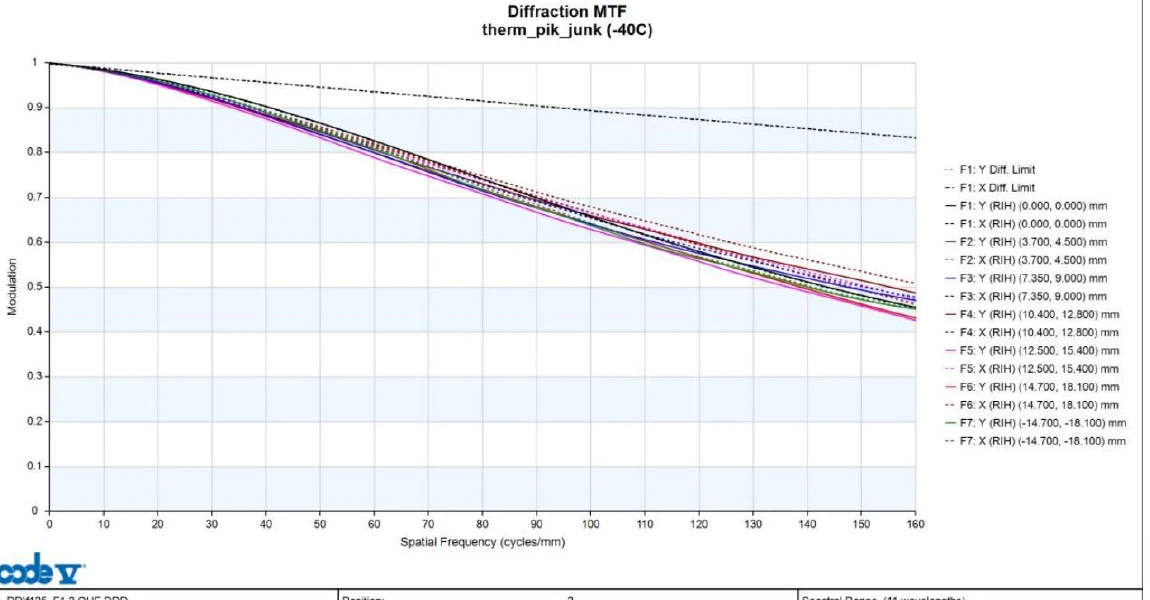

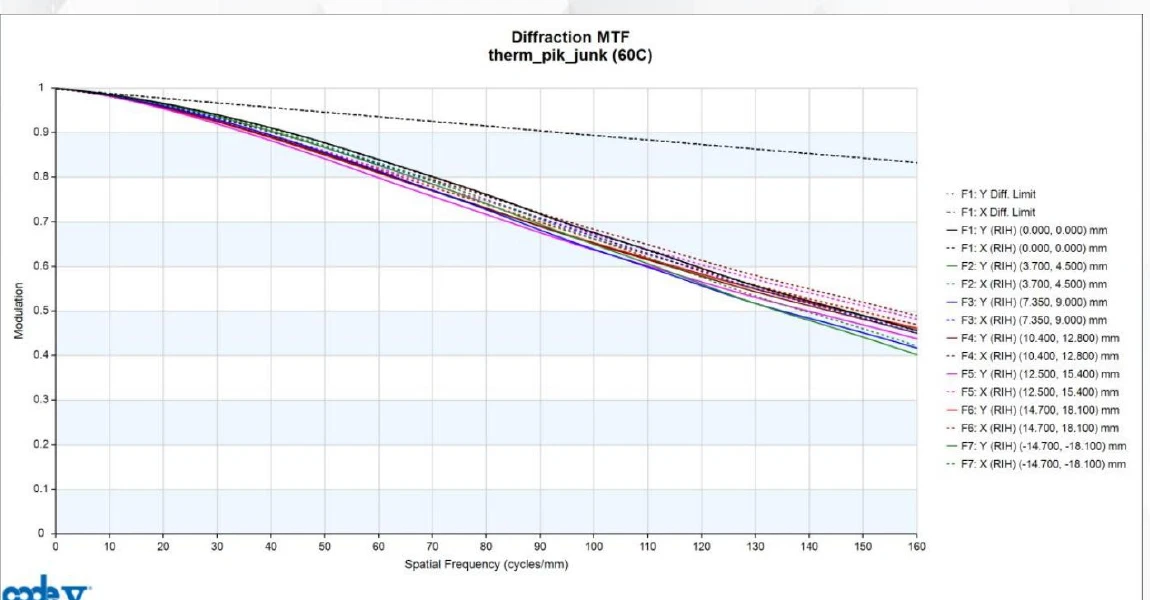

MTF |
Full-field MTF ≥ 0.4 @160 lp/mm, across full temperature range |
|
Distortion |
≤ 1% at maximum diagonal field of view |
|
Vignetting |
≤ 4% |
|
Transmittance |
≥ 81% |
|
Field of View |
10° × 10° |

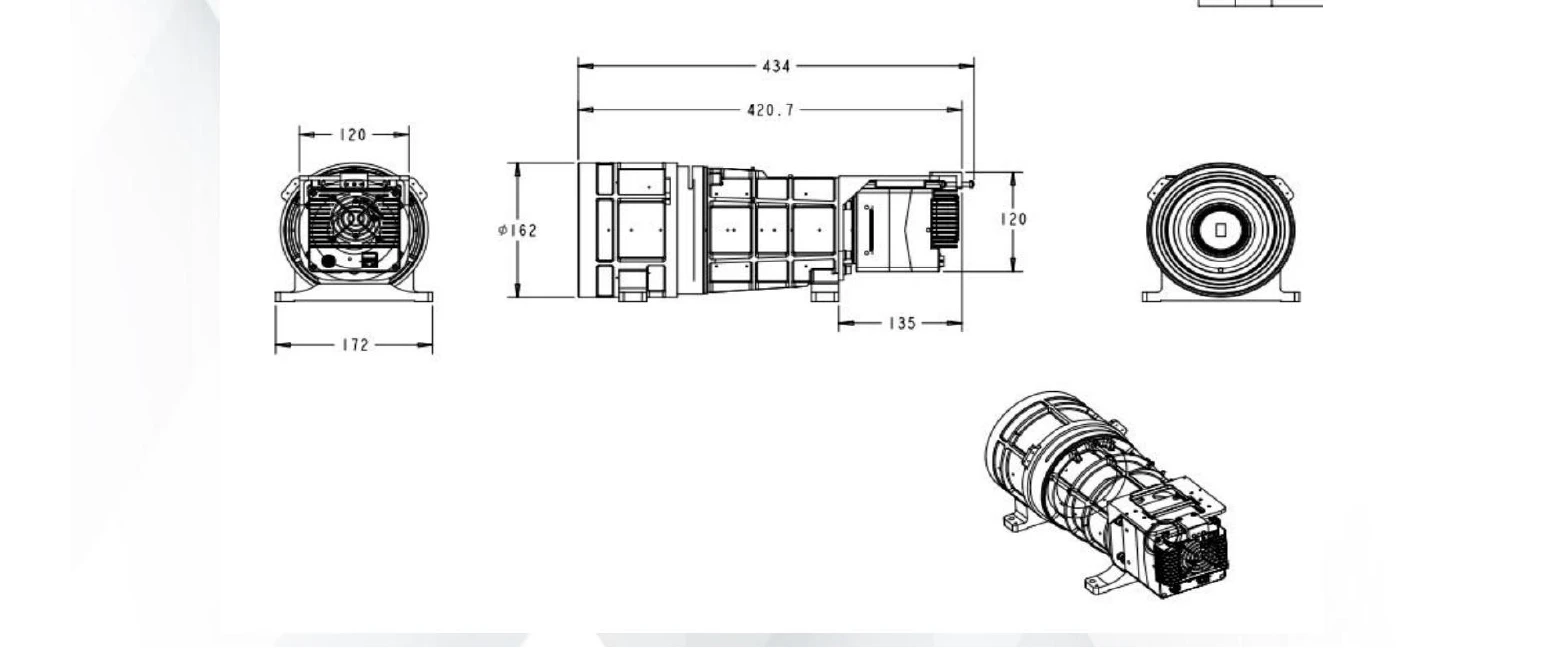

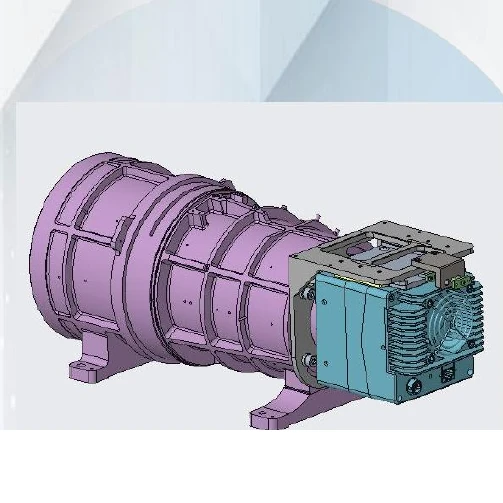

Product Structure

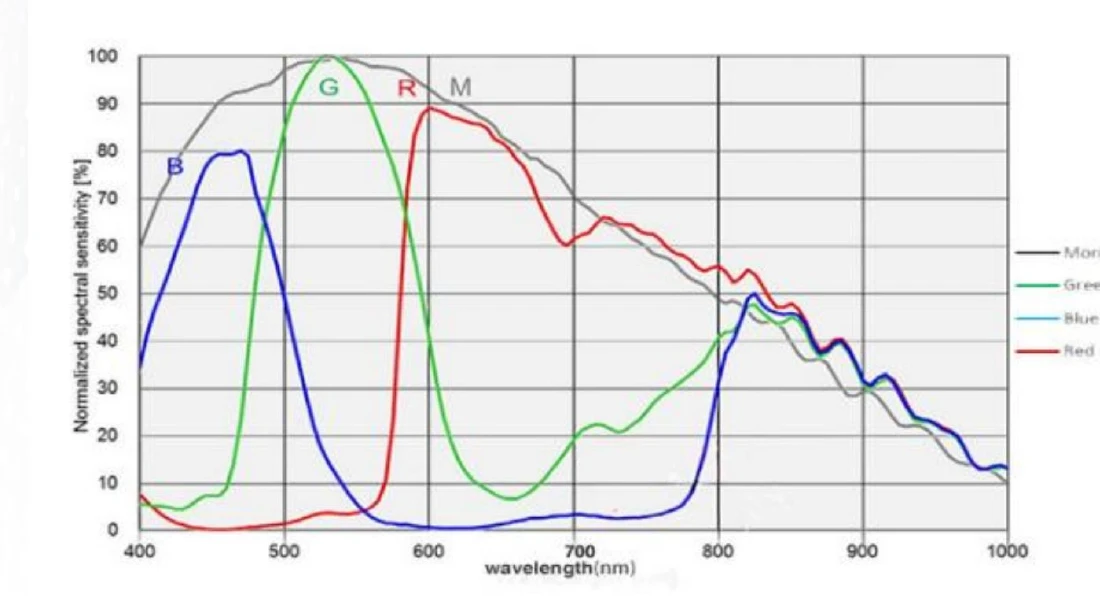

Spectral Response
IDD file I/O Interface
|
Pin |
Definition |
Description |
|
1 |
Line 0+ |
Optocoupler input, positive |
|
2 |
GND |
Camera power ground / GPIO ground |
|
3 |
Line 0- |
Optocoupler input, negative |
|
4 |
POWER_IN |
Camera external power supply, 24VDC (±10%) |
|
5 |
Line 2 |
GPIO input/output |
|
6 |
RS232 Rx |
RS232 serial receive |
|
7 |
Line 1- |
Optocoupler output, negative |
|
8 |
Line 1+ |
Optocoupler output, positive |
|
9 |
GND |
Camera power ground / GPIO ground |
|
10 |
GND |
Camera power ground / GPIO ground |
|
11 |
POWER_IN |
Camera external power supply, 24VDC (±10%) |
|
12 |
RS232 Tx |
RS232 serial transmit |
Imaging Quality
Imaging Quality (continued)
Night Vision Performance
