IR-EO Cameras & Systems Co., Ltd. is one of the most reliable manufacturers and suppliers of 640 384 uncooled thermal vision sight compact model in China. Our factory offers high quality products made in China with competitive price. Welcome to contact us for customized service.

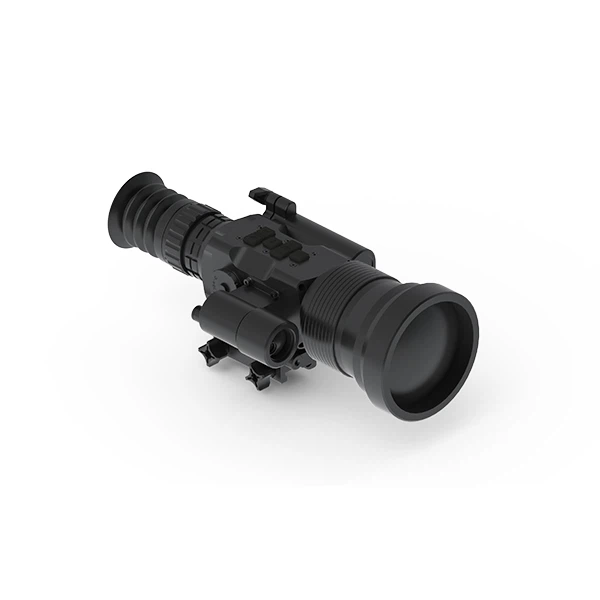

Thermal vision Sights (compact model), SC-TSB 3/6
The TSB series is a popular release of our thermal weapon sights series, combining the new technology with practical battlefield requirements. These compact and lightweight sights deliver superior thermal imaging capabilities without compromising mobility or operational effectiveness.
Key Features:
Advanced VOX Shutter-Free Technology:
- Continuous, uninterrupted thermal imaging
- Enhanced target acquisition speed
- Silent operation for tactical advantage
Superior Performance:
- High sensitivity for exceptional thermal detection
- Rapid refresh rate for smooth target tracking
- Outstanding stability for accurate targeting
- Clear imaging in total darkness and adverse conditions
Tactical Advantages:
- Compact design for improved weapon balance
- Lightweight construction reducing operator fatigue
- Multi-functional capabilities for various mission profiles
- Quick-mount system for rapid deployment
Technical Excellence:
- Advanced thermal sensor for superior detection
- High-resolution display for clear target identification
- Robust construction for battlefield reliability
- Extended battery life for prolonged operations
Whether for military operations, law enforcement, or professional applications, the TSB series delivers the perfect combination of performance, portability, and reliability in a compact thermal weapon sight
TSB 6 series are designed with 640x480 advanced compact 12um FPA sensor, which pertains to the lightweight multi-functional thermal weapon sights. With advanced shutter-free technology, it has the features of high sensitivity, high refresh rate and high stability. It can be used in various scenes for 24-hour full-scene imaging investigation and observation, such as reconnaissance and observation, outdoor hunting, outdoor exploration, security and anti-theft, maritime operations, special tasks and other scenes.
Application:
● Reconnaissance and observation Outdoor hunting
● Security and anti-theft, Maritime operations
● Outdoor exploration
● Special tasks
● Maritime operation
Video
|
Model name |
SC-TSB6 |
|
Sensor |
|
|
Pixels |
640x512 / 384x288 |
|
Spectrum |
8~14µm |
|
Pitch |
12µm |
|
NETD |
<40mk |
|
Optical |
|
|
Focus Length |
35mm (75/52mm optional) |
|
Focusing |
Manual |
|
F# |
F1.0 |
|
FOV |
17.7°x14.2° (± 5%) |
|
Image display |
|
|
Frame rate |
25Hz |
|
Display OLEO |
0.39-inch OLED |
|
Resolution |
1024x768 |
|
Image magnifi |
x1 / x2/ x4 Electronic magnify |
|
Image schema |
Black-hot, White-hot, Red-hot, Iron-hot, Sky, Stroke, The edge Eyepiece |
|
Eye piece |
Monocular display, adjustable diopter |
|
Detection Range (*) |
|
|
Detection |
Human (1.7x0.5m) :1500m |
|
Static Target (2.3x2.3m) :1800m |
|
|
Recognition |
Human (1.7x0.5m) :800m |
|
Static Target (2.3x2.3m) :1200m |
|
|
Power |
|
|
Battery |
18650 rechargeable lithium battery x2 |
|
Working Time |
> 8hrs (at room temperature) |
|
Interface |
|
|
Electrical interface |
Aviation connector Environment |
|
Operation temperature |
-40°C ~ 60°C |
|
Storage temperature |
-45°C ~ 65°C |
|
Protection |
IP67 |
|
Physical |
|
|
Dimension |
176 (L) x 80(W) x 72 (H) |
|
Weight |
<=600g (With battery) |
|
Mechanical |
|
|
Anti-Shock |
500G(1200G Optional) |
|
Rail |
Picatinny rail |
|
Additional Function |
|
|
Laser ranging |
Optional |
(*) Measured under atmosphere clearance condition.
