IR-EO Cameras & Systems Co., Ltd. is one of the most reliable manufacturers and suppliers of 640 vga vox dual spectrum thermal fusion vision goggle in China. Our factory offers high quality products made in China with competitive price. Welcome to contact us for customized service.
SC-TGD 6F series is a helmet-mounted enhanced night vision glasses, empowered by the low-light and thermal imaging fusion technology, which compensates the deficiency when using low-light imaging alone in detecting targets, hence allows to have a wide range of usage.
SC-TGD 6F enhanced night vision goggles can be cooperated with sights, in such case it can match with the field of view and reticle in the sights accurately, therefore allows rapid capture of targets and covert targeting.
|
ITEM |
SC-TGD 6F |
|
TI camera |
|
|
Parameters |
|
|
Sensor type |
8～14μm Uncooled LWIR FPA |
|
Pixels |
640×480 |
|
Pitch size |
12μm |
|
Focus |
16mm (Standard, other options customizable) |
|
FOV |
25.8°×19° |
|
NETD |
<40mK |
|
Gain/Contrast adjustment |
Auto/Manual |
|
Low-light camera |
|
|
Focus |
25mm |
|
Focusing distance |
0.25m～∞ |
|
FOV |
40° |
|
Gain adjustment |
Support |
|
Product |
|
|
Exit-pupil |
15mm |
|
Eye-relief |
25mm |
|
Diopter |
-3.5°~2.5° |
|
Display mode |
Black/White/Orange hot, Profiling, breath notice |
|
e-compass |
Direction(yaw), pitch, roll |
|
Power |
|
|
Operating time |
≥8h |
|
Operating time (low-light only) |
≥60 h |
|
Mechanical & Environmental |
|
|
Weight |
≤380g |
|
Operating temperature |
-40℃～+60℃ |

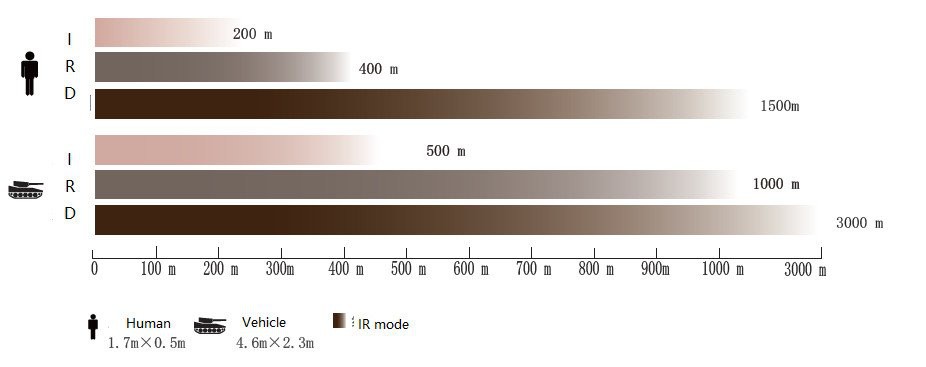

DRI
(*) Measured under atmosphere clearance condition.
