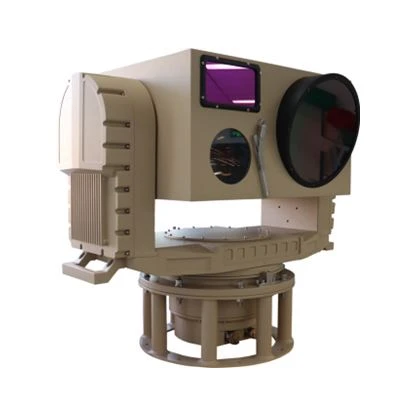

IR-EO Cameras & Systems Co., Ltd. is one of the most reliable manufacturers and suppliers of x200 cooled mwir thermal radar in China. Our factory offers high quality products made in China with competitive price. Welcome to contact us for customized service.
1. Product Overview
Powered by embedded AI target detection and tracking, X200 delivers 24/7 autonomous monitoring, identification, and geolocation of ground and low-altitude threats-including drones, humans, and vehicles-across a full 360° field of regard.
Deployable on fixed, vehicle-mounted, or aerostat platforms, the X100/X200 excels in harsh environments, supports multi-sensor fusion, and integrates seamlessly with radar, RF detection, jammers, and command systems to form a complete counter-UAV defense network.
Key Advantages:
- Cost-Effective 360° Coverage – Replaces multiple fixed cameras
- All-Weather Operation – Full performance in fog, rain, snow, and total darkness
- Split-Body Modular Design – Easy transport and field assembly
- Fully Domestic Components – Sovereign, secure, and supply-chain resilient
- IP66/IP67 Ruggedized – Built for extreme marine and desert conditions
2. Highlights
|
Feature |
Benefit |
|
Multi-Spectral Detection |
MWIR + EO + Laser: Day/night, all-weather clarity |
|
Ultra-Fast Slew Rates |
80°/s azimuth, 100°/s² acceleration – captures fast-moving drones |
|
Full Hemispherical Coverage |
360° × 180° – no blind spots |
|
Sub-Pixel Precision |
0.01° positioning accuracy with closed-loop servo control |
|
AI-Powered Tracking |
Auto-acquire, track through occlusion, classify drone vs. bird |
|
Gyro-Stabilized Optics |
2-axis stabilization isolates platform motion (vehicle/ship/aerostat) |
|
Precise Geolocation |
Laser + INS fusion for real-time target coordinates |
|
Smart Analytics |
Intrusion alerts, behavior analysis, hotspot detection |
|
Remote Upgrade & Diagnostics |
Over-the-air firmware, self-test, fault reporting |
3. Technical Specifications
|
Category |
Parameter |
Specification |
|
Cooled Thermal Imager (MWIR) – X200 |
Detector |
Cooled HgCdTe (MCT) FPA |
|
Spectral Band |
3.7 – 4.8 μm |
|
|
Resolution |
640 × 512 |
|
|
NETD |
≤ 20 mK |
|
|
Lens |
90 – 1100 mm Continuous Zoom |
|
|
Cold Start Time |
≤ 8 min (25°C) |
|
|
EO Camera |
Sensor |
Wide-Spectrum Silicon / CMOS |
|
Resolution |
1920 × 1080 (Full HD) |
|
|
Min. Illumination |
Color: 0.02 Lux / B&W: 0.002 Lux |
|
|
Lens |
16.7 – 1000 mm Motorized Zoom |
|
|
Features |
WDR, EIS, 3D-DNR, Auto White Balance, Dual Fog Penetration (Optical + Electronic) |
|
|
Laser Rangefinder (Optional) |
Max Range |
3 km |
|
Accuracy |
±3 m |
|
|
Repetition Rate |
0.2 Hz |
|
|
Pan-Tilt Servo System |
Structure |
2-Axis Stabilized Platform |
|
Azimuth Range |
n×360° (continuous), mechanical lock |
|
|
Elevation Range |
-90° to +90° (programmable soft limits) |
|
|
Max Speed |
Az: 80°/s, El: 60°/s |
|
|
Acceleration |
100°/s² (both axes) |
|
|
Positioning Accuracy |
≤ 0.01° |
|
|
Presets |
≥ 255 |
|
|
Scan Modes |
Cruise, Line, Frame, Apple-Peel, Day/Night Patrol |
|
|
AI Tracking & Analytics |
Tracking Engine |
Embedded hardware-based |
|
Modes |
Manual / Auto / Radar-Cued |
|
|
Algorithms |
Multi-target detection, reacquisition after occlusion |
|
|
Classification |
Drone, Bird, Human, Vehicle (dataset trainable) |
|
|
Alerts |
Intrusion, Loitering, Boundary Crossing |
|
|
Environmental & Power |
Operating Temp |
-40°C to +60°C |
|
Storage Temp |
-45°C to +70°C |
|
|
Humidity |
95% RH |
|
|
Ingress Protection |
IP66 (standard) / IP67 (X200 marine version) |
|
|
Salt Fog / Mold |
96 hrs / GJB150.10A compliant |
|
|
Power Supply |
AC 220V ±15% or DC 48V |
|
|
Power Consumption |
≤ 600W (peak), ≤ 150W (steady) |
|
|
Dimensions |
Ø565 mm × H880 mm |
|
|
Weight |
≤ 115 kg |
|
|
Communications & Integration |
Network |
1× Gigabit Ethernet (10/100/1000M adaptive) |
|
Protocols |
TCP/IP, ONVIF 2.0, GB/T 28181, HTTP, RTP, RTSP |
|
|
Data Output |
FOV, zoom, focus, pan/tilt angles, target coordinates |
|
|
Remote Management |
OTA upgrade, reboot, health monitoring |
4. Physical Design
- One-Piece Die-Cast Housing – High rigidity, lightweight, nitrogen-filled
- Three-Window Optics – Simultaneous MWIR, EO, and LRF operation
- Industrial Defroster – Prevents lens fogging in cold/humid climates
5. Applications
|
Scenario |
Deployment |
|
Military Bases |
Perimeter threat detection & C-UAS |
|
Airports |
Runway & apron drone monitoring |
|
Critical Infrastructure |
Power plants, refineries, data centers |
|
Border & Coast Guard |
Vehicle-mounted or aerostat patrols |
|
Maritime Defense |
Ship-based low-altitude surveillance |
|
Major Events |
VIP protection & airspace security |
Dimensional Drawings
Real Test Pictures
Complicate background scenario (Typical Urban area)
Distinguish Birds from UAV
Why Choose X100/X200 Thermal Radar?
- Affordable 360° Awareness: Replace 8–20 fixed (staring) thermal cameras with one rotating AI-powered turret.
- Proven in the Field: Deployed across military airfields, coastal zones, and mobile C-UAS units.
- Future-Ready: Supports AI model updates, third-party sensor integration, and edge analytics expansion.
