The POD-613D Mini Dual-Axis Dual-Spectrum AI Gimbal employs dual-frame gyro stabilization technology and an innovative embedded gimbal wiring structure. It integrates a 48MP visible light CMOS image sensor and a long-wave uncooled infrared thermal imaging camera for synergistic dual-band imaging. The visible light camera supports low-latency analog video stream output, with built-in AI algorithms for autonomous recognition, precise locking, continuous tracking, and positioning guidance of targets such as people, vehicles, doors, and windows – reliable even in complex environments.
Overview
The POD-613D triple-light micro-guidance pod integrates DFOV fixed-focus EO camera (3.2mm and 16mm) and a 13mm fixed-focus infrared thermal imager, with a total weight of only about 85 grams, achieving extreme lightweight design. It employs a two-axis two-frame structure and integrates high-precision electronic stabilization technology, significantly enhancing imaging accuracy and system reliability. The built-in target tracking module enables real-time location, stable tracking, and guidance for striking dynamic targets such as people and vehicles, while offering excellent anti-launch impact capability, making it ideally suited for catapult-launched UAVs and other lightweight platforms.
Features:
- Extremely compact structure, weight of 85g;
- Anti-launch impact, suitable for catapult-launched UAVs;
- With servo stabilization function;
- Built-in tracking function;
- Wide voltage 12~28V input, dynamic power consumption control;
- All electronic devices integrated in metal shell packaging, compliant with EMC design specifications.
Application Scenarios
- Tactical missions: Reconnaissance, counter-terrorism, surveillance, and infrastructure inspection (e.g., power lines, pipelines).
- Platforms: Lightweight UAVs, small manned aircraft, including helicopters and fixed-wing drones.
| Parameter | Specification |
|---|---|
| Weight | ≤85g |
| Dimensions | ≤48×45×65mm |
| Motion Range | Azimuth: -110°~+110°; Elevation: -100°~+40° |
| Stabilization Accuracy | 0.1mrad (1°/2Hz) (1σ) |
| Maximum Angular Velocity | ≥100°/s |
| Angular Position Accuracy | ≤0.3° |
EO(DFOV)/IR Camera
| EO camera (WFOV) | 1920×1080@60fps; FOV: 82°×52°; Focal Length: 3.2mm |
|---|---|
| EO camera (NFOV) | 1920×1080@60fps; FOV: 19.7°×11°; Focal Length: 16mm |
| TI camera (Thermal) | 640×512@50fps Uncooled; FOV 32.9°×26.6°; Focal Length: 13mm |
Electrical, Interfaces and Tracking
| Power Supply Voltage | DC 12~28V |
|---|---|
| Power Consumption | Average ≤10W, Peak ≤20W |
| External Interface | Control Interface: Serial Port; Video Output: Network |
| Tracking Performance | Tracking Speed ≥40°/s |
Environmental
|
Environmental Adaptability
|
Operating Temperature: -20℃~+60℃ |
| Storage Temperature: -20℃~+60℃ | |
| Launch Impact: ≥400g |

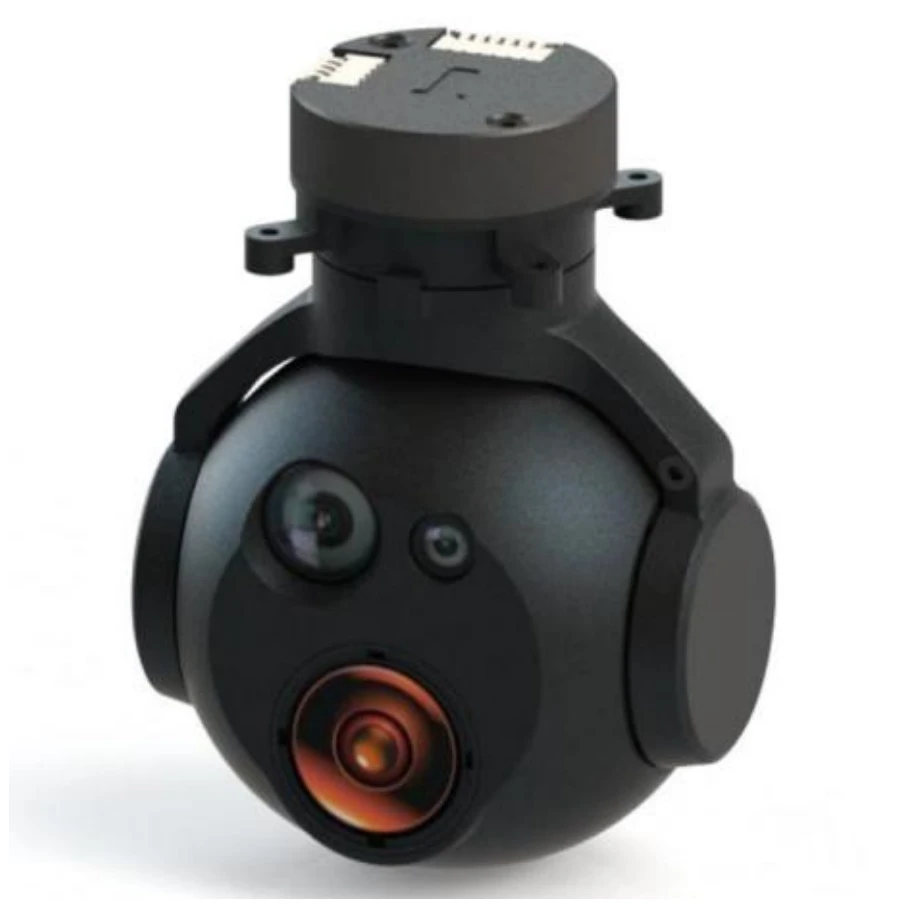

Product Picture

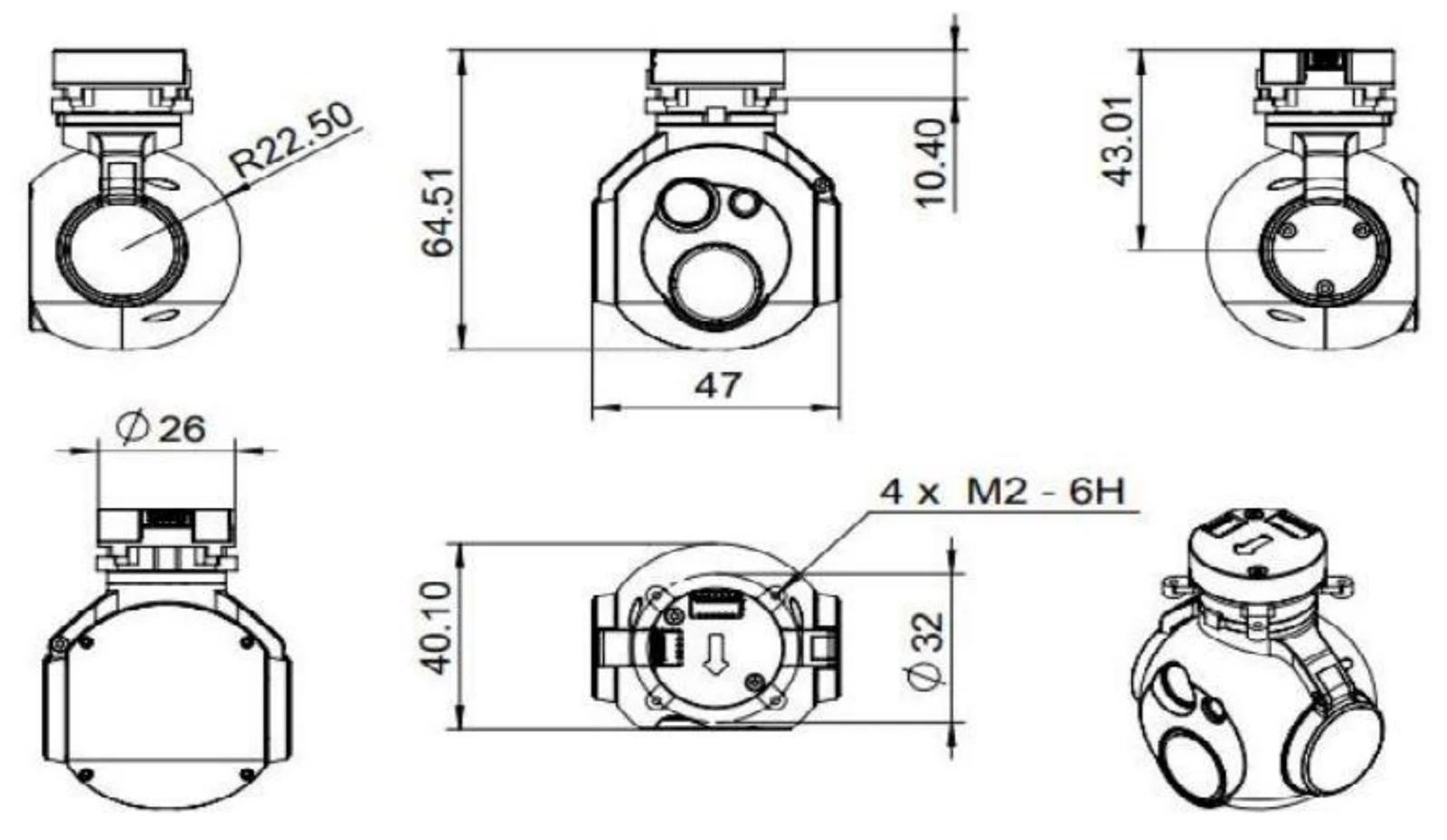

Dimensional Drawings
