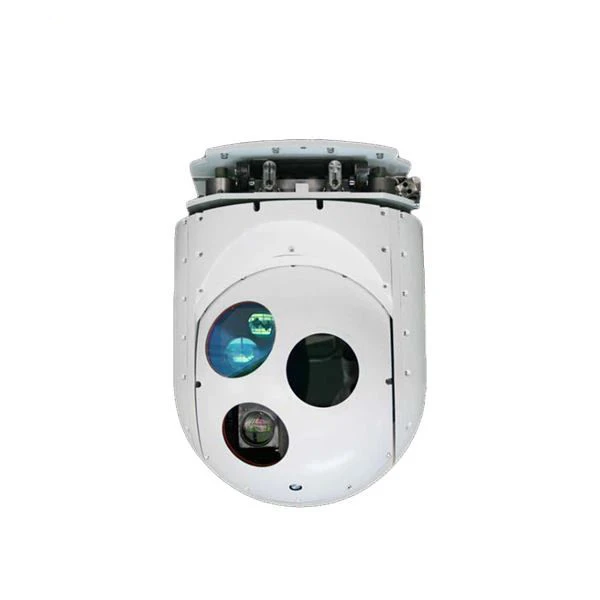

IR-EO Cameras & Systems Co., Ltd. is one of the most reliable manufacturers and suppliers of isrt eo systems for mobile platform in China. Our factory offers high quality products made in China with competitive price. Welcome to contact us for customized service.
Product features
a) Provide images of both thermal and visible light.
Targets are searched and monitored day and night for ground, sea and air;
b) Able to stabilize the visual axis on the moving object;
c) Able to manually operate the aiming line movement, lock the target and automatically track the target;
d) Able to automatically search the area specified by the operator according to a predetermined path;
e) Output the status information of the subsystem through the communication interface and receive the command information of the device outside the system through the communication interface;
f) Equipped with laser ranging function, which can provide target distance information and calculate the position of the target;
g) Able to perform maintenance operations such as online zero calibration, optical axis crosshair adjustment, and drift correction.
2. Technical Specification
|
Rotation range |
|
|
Azimuth |
n×360°(continuous) |
|
Pitch |
-110°～+10° |
|
Maximum angular velocity of sight line |
|
|
Azimuth |
≥90°/s |
|
Pitch |
≥90°/s |
|
Maximum angular acceleration of sight line |
|
|
Azimuth |
≥100°/s 2 |
|
Pitch |
≥100°/s 2 |
|
Angle position accuracy of sight line |
|
|
Azimuth |
≤0.5mrad(1σ) |
|
Pitch |
≤0.5mrad(1σ) |
|
Stability accuracy of sight line |
|
|
Azimuth |
≤0.05mrad(1σ)(1º/2Hz,2º/1Hz) |
|
Pitch |
≤0.05mrad(1σ)(1º/2Hz,2º/1Hz) |
|
Visible |
|
|
Resolution |
1920×1080 color |
|
Focus |
13mm~255mm continuous zoom |
|
FOV |
1.48°×0.83°~28°×16°continuous zoom |
|
Thermal |
|
|
Sensor |
MWIR cooled |
|
Resolution |
640×512 |
|
Focus |
25mm~250mm continuous zoom |
|
FOV |
2.2°×1.7°~21.7°×17.4° |
|
Laser rangefinder |
|
|
Accuracy |
±5m |
|
Range |
50m~10km |
|
Power |
|
|
Power supply |
DC 28V |
|
Consumption |
Stable: ≤200W. Peak: ≤350W |
|
Physical specification |
|
|
Size |
≤φ220mm×350mm(H) |
|
Weight |
≤8.5kg |
|
Detection range |
|
|
Thermal (Visibility is not less than 20km, relative humidity is not more than 70%, and the target background temperature difference is 3K) |
|
|
Human(1.7m×0.5m) |
Detection range: ≥7km |
|
Recognition range: ≥2km |
|
|
Vehicle(2.3m×2.3m) |
Detection range: ≥15km |
|
Recognition range: ≥4.5km |
|
|
Drone(0.4m×0.4m) |
Detection range: ≥2.5km |
|
Recognition range: ≥0.8km |
|
|
Visible (Visibility is not less than 20km, relative humidity is not more than 70%) |
|
|
Human(1.7m×0.5m) |
Detection range: ≥25km |
|
Recognition range: ≥8km |
|
|
Vehicle(2.3m×2.3m) |
Detection range: ≥25km |
|
Recognition range: ≥20km |
|
|
Drone(0.4m×0.4m) |
Detection range: ≥12km |
|
Recognition range: ≥3.5km |
|
