FLM630: Monocular Multifunction Thermal-Daylight Fusion Observer with LRF&LP
Introduction
The FLM630 is a compact, multi-channel monocular built for rapid solo reconnaissance in any light. It fuses uncooled infrared, optical daylight telescope, and high-resolution CMOS visible channels through a shared optical path-delivering seamless day-to-night observation in the lightest form factor.
Manual focus on both visible channels ensures razor-sharp detail from 10 m to infinity. Integrated eye-safe laser rangefinder (LRF) instantly measures target distance (progress circle → lower-left display), while the visible red laser pointer (clearly seen in CMOS mode and directly through the window) enables precise designation for team coordination.
Photo and video evidence capture is activated with one-handed operation, making the FLM630 ideal for border patrol, wildlife enforcement, and tactical scouting.
Key Features
- Three-in-one optics: IR + Daylight + CMOS (shared aperture)
- Manual focus (daylight & CMOS)
- LRF: Short press → distance in lower-left
- Laser Pointer: Long press → red spot (CMOS) / direct view
- Photo & video (CMOS/IR)
- Monocular OLED, toggle & button switching
- 2 × 18650, 3-shutter boot
Applications
- Solo forward observation
- Border & perimeter security
- Anti-poaching patrols
- Search & rescue in dense terrain
- Covert evidence collection
Parameter Table
|
Category |
Parameter |
Specification |
|
Infrared Channel |
Detector |
640×512 @ 12 μm |
|
Work Band |
8–12 μm |
|
|
FOV |
8.8° × 7.0° |
|
|
Polarity |
White-hot / Black-hot / Red-hot / Green-hot |
|
|
Startup Time |
<30 s |
|
|
Recognition Distance |
≥1,000 m (target not specified) |
|
|
Visible Light Channel |
Detector |
CMOS 1920×1200 |
|
FOV |
6.5° × 4.9° |
|
|
Recognition Distance |
≥1,500 m |
|
|
Daylight Telescope Channel |
Magnification |
6× |
|
FOV |
6° |
|
|
Focus Range |
20 m ~ ∞ |
|
|
Electronic Zoom |
Range |
1× to 6× |
|
Step |
0.1× |
|
|
Display |
Type |
Monocular color OLED |
|
Resolution |
1600×1200 |
|
|
Image Frequency |
Rate |
50 Hz |
|
Laser Rangefinder |
Range |
20 m ~ 6,000 m |
|
Accuracy |
±2 m |
|
|
Wavelength |
1,535 nm, Class-1 (eye-safe) |
|
|
Modes |
Continuous ranging, target calculation |
|
|
Laser Pointer |
Wavelength |
830 nm, Class-1 (eye-safe) |
|
Storage |
Capacity |
128 GB |
|
Interfaces |
Video |
HDMI |
|
Data |
RS232, USB 2.0, Ethernet |
|
|
Socket |
24-pin aviation plug |
|
|
Wireless |
WiFi image transfer |
|
|
Power |
Battery Type |
1× or 2× 18650 |
|
Runtime |
>4 h (normal temp, 2 batteries) |
|
|
Positioning |
GPS |
Built-in |
|
Magnetic Compass |
Azimuth Accuracy |
±10 mil / ±0.5° |
|
Pitch Accuracy |
±7 mil / ±0.4° |
|
|
Roll Accuracy |
±3 mil / ±2° |
|
|
Physical |
Weight |
<1,500 g (without lens/eye caps) |
|
Dimensions |
190 mm × 175 mm × 75 mm (without caps) |
|
|
Environmental |
Operating Temp |
–40 °C to +55 °C |
|
Storage Temp |
–50 °C to +70 °C |
|
|
Protection |
IP67 |
|
|
Function list |
Power on/off Mode switching Brightness/contrast adjustment Focus adjustment Polarity switching Reticle type/brightness/position Photo/video capture, save, playback, search, delete Low voltage alarm, reverse battery protection Power-off data save WiFi image transmission |
|

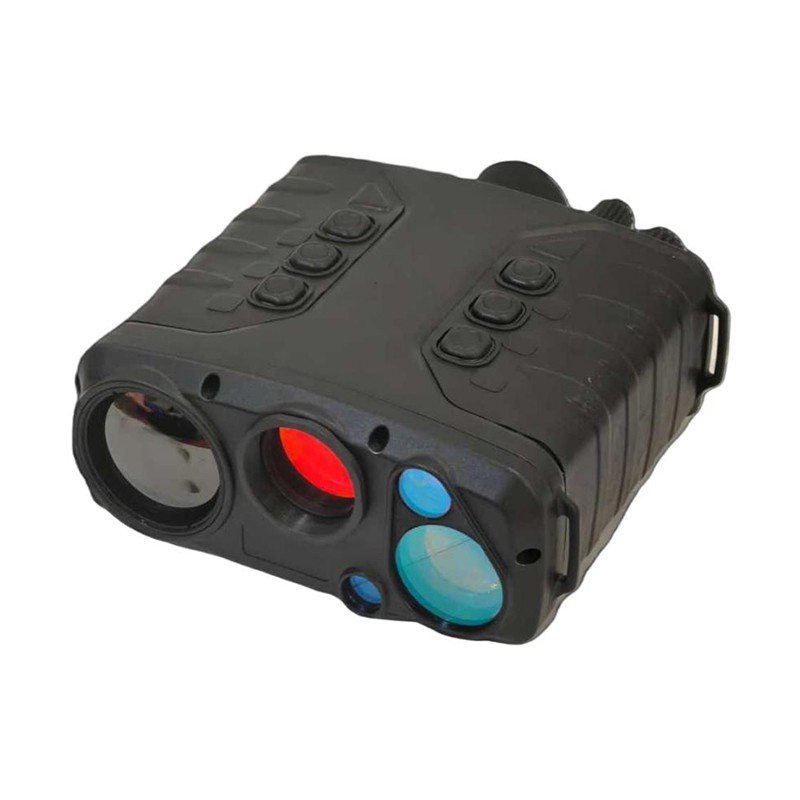

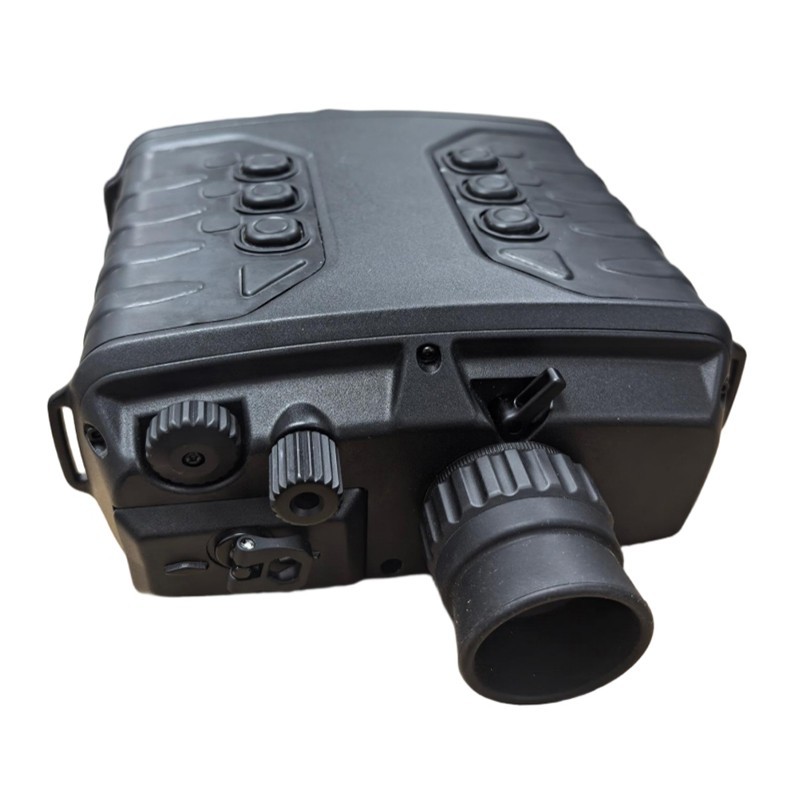

Product Pictures
